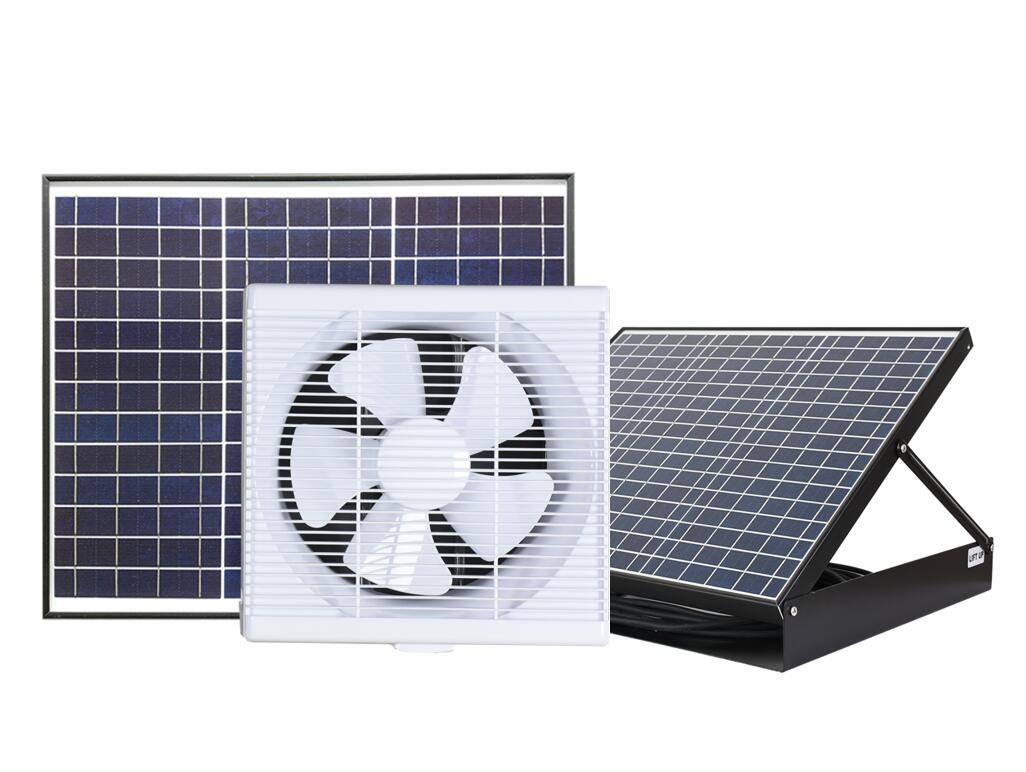

40W+40W solar louvered wall fan-with battery

40w to support motor runs directly at daytime,
40w to charge 16V 9.6Ah battery at daytime,
24V brushless DC motor,
10 inch ABS plastic fan blades (host size: 330x305x130mm),
ABS plastic front louver and galvanized steel with anti-corrosive coating rear shutter

whole set warranty: 5 years

  • Day & Night Time Nonstop Running Solar Wall Exhaust Fan

    The solar fan auto-runs directly powered by solar panel in sunny hours, and keeps running by auto-switchover to battery in sunless time.


    16V*9.6Ah lithium battery, charged by 40W solar panel

    Smart controller

    Lithium battery is expensive so the fan will not waste any battery power when not necessary, which is decided by the smart controller inside the fan. This controller will keep sensing output of the fan's solar panel. When output is low to certain level, it will switch in the battery power. And when output rises to certain voltage, it will cut the battery power to avoid any unnecessary cost.

    • Power
      40W + 40W
    • Blades
      10 inch ABS plastic fan blades (host size: 330x305x130mm)
    • Material
      galvanized steel housing+PC cover
    • Work Time
      day & night nonstop, sunny hours by solar panel, sunless periods by battery
    • Other accessories
      Adjustable Thermostat, Hand Switch, Fan Guard
    • Solar Panel
      Monocrystalline solar panel
